钢制管道伸缩器

STELL PIPE EXTENSION IMPLEMENT

钢制管道伸缩器可在一定范围内伸缩调节阀门与管道的连接,并能自由调节因环境温度的变化而引起的物理性伸缩。补偿地基下沉,方便管道的对接,是建材、冶金、矿山、石化、电力等行业的管道系统中不可缺少的自动补偿设备。

The valve can extend and adjust the connection between valve and pipe in some range. It can also adjust physical extension freely which is caused by the change of circumstance temperature. It can compensate the groundwork sinkage and convenient the pipe connection. It is the indispensable automatically compensating device in pipe system of building material, metallurgy, mining, oil, power industries etc.

结构特点:

Structure characteristic:

钢制管道伸缩器采用优质钢板焊接结构,耐温、耐磨、使用寿命长,承受较大的温度变化,特别是外部密封可视工况调节密封比压及更换密封圈。能在 360 °范围内自由转动一定角度,而密封能自动补偿,从而有效地杜绝了外漏。有效的限位机构可避免伸缩器超过最大伸缩量使管道更安全。

The valve is welded in fine steel, having the features of high-temperature resistance , endurance, long life, enduring big temperature change. Especially we can adjust seal ratio and exchange seal ring referring to the working condition. The seal can be compensated automatically after turning certain angle below 360 ℃ and prevent the leak effectively. The effective limit-place device can make the pipe safer by avoiding the extension beyond the maximum.

性能参数;

Performance parameter:

公称压力 Nominal pressure

0.6MPa

1.0MPa

1.6MPa

2.5MPa

强度试验压力 Intensity test pressure

1.1MPa

1.5MPa

2.1MPa

3.5MPa

密封试验压力 Seal test pressure

0.76MPa

1.2MPa

1.76MPa

2.75MPa

最大伸缩量 Max extension

120 ~ 200

适用温度 Suitable temperature

-35 ℃~ 120 ℃

适用介质 Suitable medium

油、水、含尘烟气等 Oil, water, smoke with dust etc

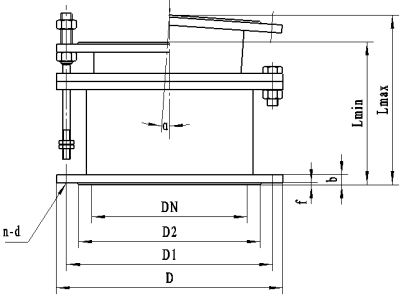

GSQ-6C 10C 16C 25C 外形图:

Appearance figure:

GSQ-6C 10C 16C 25C 外形连接尺寸:

Appearance joint dimensions:

DN

PN,MPa

D

D1

D2

f

b

n-d

Lmax

Lmin

α °

重量 (Kg)W

100

0.6

210

170

144

2

18

4- Φ 18

353

253

≤ 4℃

18

1.0

220

180

156

2

22

8- Φ 18

353

253

≤ 4℃

22

1.6

220

180

156

2

22

8- Φ 18

353

253

≤ 4℃

37

2.5

235

190

156

2

24

8- Φ 22

353

253

≤ 4℃

43

125

0.6

240

200

174

2

18

8- Φ 18

369

269

≤ 4℃

20

1.0

250

210

184

2

22

8- Φ 18

369

269

≤ 4℃

28

1.6

250

210

184

2

22

8- Φ 18

369

269

≤ 4℃

51

2.5

270

220

184

2

24

8- Φ 26

369

269

≤ 4℃

57

150

0.6

265

225

199

2

18

8- Φ 18

382

282

≤ 4℃

28

1.0

285

240

211

2

22

8- Φ 22

382

282

≤ 4℃

38

1.6

285

240

211

2

22

8- Φ 22

382

282

≤ 4℃

67

2.5

300

250

211

2

26

8- Φ 26

382

282

≤ 4℃

72

200

0.6

320

280

254

2

18

8- Φ 18

398

298

≤ 4℃

35

1.0

340

295

266

2

24

12- Φ 22

398

298

≤ 4℃

49

1.6

340

295

266

2

24

12- Φ 22

398

298

≤ 4℃

78

2.5

360

310

274

2

28

12- Φ 26

398

298

≤ 4℃

87

250

0.6

375

335

309

2

18

12- Φ 18

413

313

≤ 4℃

56

1.0

395

350

319

2

24

12- Φ 22

413

313

≤ 4℃

71

1.6

405

355

319

2

26

12- Φ 26

413

313

≤ 4℃

90

2.5

425

370

330

2

30

12- Φ 30

413

313

≤ 4℃

98

300

0.6

440

395

363

2

20

12- Φ 22

417

317

≤ 4℃

62

1.0

445

400

370

2

24

12- Φ 22

417

317

≤ 4℃

82

1.6

460

410

370

2

26

12- Φ 26

417

317

≤ 4℃

125

2.5

485

430

389

2

30

16- Φ 30

417

317

≤ 4℃

132

350

0.6

490

445

413

2

22

12- Φ 22

432

332

≤ 4℃

86

1.0

505

460

429

2

26

16- Φ 22

432

332

≤ 4℃

108

1.6

520

470

429

2

28

16- Φ 26

432

332

≤ 4℃

150

2.5

555

490

448

2

34

16- Φ 33

432

332

≤ 4℃

168

400

0.6

540

495

463

2

22

16- Φ 22

448

348

≤ 4℃

106

1.0

565

515

480

2

26

16- Φ 26

448

348

≤ 4℃

134

1.6

580

525

480

2

28

16- Φ 30

448

348

≤ 4℃

178

2.5

620

550

503

2

38

16- Φ 36

448

348

≤ 4℃

188

450

0.6

595

550

518

2

24

16- Φ 22

567

417

≤ 3℃

132

1.0

615

565

530

2

28

20- Φ 26

567

417

≤ 3℃

156

1.6

640

585

548

2

30

20- Φ 30

567

417

≤ 3℃

213

2.5

670

600

548

2

42

20- Φ 36

567

417

≤ 3℃

232

500

0.6

645

600

568

2

24

20- Φ 22

572

422

≤ 3℃

155

1.0

670

620

582

2

28

20- Φ 26

527

422

≤ 3℃

170

DN

PN,MPa

D

D1

D2

f

b

n-d

Lmax

Lmin

α°

重量 (Kg)W

500

1.6

715

650

609

2

32

20- Φ 33

572

422

≤ 3℃

248

2.5

730

660

609

2

44

20- Φ 36

572

422

≤ 3℃

268

600

0.6

755

705

667

2

24

20- Φ 26

596

446

≤ 3℃

186

1.0

780

725

682

2

28

20- Φ 30

596

446

≤ 3℃

225

1.6

840

770

720

2

32

20- Φ 36

596

446

≤ 3℃

313

2.5

845

770

720

2

46

20- Φ 39

596

446

≤ 3℃

353

700

0.6

860

810

772

5

26

24- Φ 26

610

460

≤ 3℃

212

1.0

895

840

794

5

30

24- Φ 30

610

460

≤ 3℃

299

1.6

910

840

794

5

32

24- Φ 36

610

460

≤ 3℃

407

2.5

960

875

820

5

48

24- Φ 42

610

460

≤ 3℃

432

800

0.6

975

920

878

5

26

24- Φ 30

741

541

≤ 3℃

315

1.0

1015

950

901

5

30

24- Φ 33

741

541

≤ 3℃

367

1.6

1025

950

901

5

34

24- Φ 39

741

541

≤ 3℃

536

2.5

1085

990

928

5

50

24- Φ 48

741

541

≤ 3℃

588

900

0.6

1075

1020

978

5

28

24- Φ 30

849

749

≤ 2℃

399

1.0

1115

1050

1001

5

34

28- Φ 33

849

749

≤ 2℃

419

1.6

1125

1050

1001

5

36

28- Φ 39

849

749

≤ 2℃

638

2.5

1185

1090

1028

5

52

28- Φ 48

849

749

≤ 2℃

721

1000

0.6

1175

1120

1078

5

28

28- Φ 30

855

655

≤ 2℃

478

1.0

1230

1160

1112

5

34

28- Φ 36

855

655

≤ 2℃

538

1.6

1255

1170

1112

5

38

28- Φ 42

855

655

≤ 2℃

868

2.5

1320

1210

1140

5

56

28- Φ 56

855

655

≤ 2℃

905

1100

0.6

1305

1240

1195

5

30

28- Φ 33

918

668

≤ 2℃

684

1.0

1340

1270

1215

5

38

32- Φ 36

918

668

≤ 2℃

728

1.6

1355

1270

1215

5

40

32- Φ 42

918

668

≤ 2℃

1062

2.5

1420

1310

1240

5

56

32- Φ 56

918

668

≤ 2℃

1132

1200

0.6

1405

1340

1295

5

32

32- Φ 33

933

683

≤ 2℃

795

1.0

1455

1380

1328

5

38

32- Φ 39

933

683

≤ 2℃

838

1.6

1485

1390

1328

5

42

32- Φ 48

933

683

≤ 2℃

1260

2.5

1530

1420

1350

5

60

32- Φ 56

933

683

≤ 2℃

1342

1300

0.6

1520

1450

1400

5

32

32- Φ 36

955

705

≤ 2℃

882

1.0

1575

1490

1430

5

38

32- Φ 42

955

705

≤ 2℃

915

1.6

1585

1490

1430

5

46

32- Φ 48

955

705

≤ 2℃

1360

1400

0.6

1630

1560

1510

5

32

36- Φ 36

975

725

≤ 2℃

992

1.0

1675

1590

1530

5

40

36- Φ 42

975

725

≤ 2℃

1092

1.6

1685

1590

1530

5

46

36- Φ 48

975

725

≤ 2℃

1470

1500

0.6

1730

1660

1610

5

34

36- Φ 36

1005

755

≤ 2℃

1085

1.0

1785

1700

1640

5

42

36- Φ 42

1005

755

≤ 2℃

1355

1.6

1820

1710

1640

5

50

36- Φ 56

1005

755

≤ 2℃

1688

工作原理:

Working principle:

钢制管道伸缩器采用复合套管式结构,伸缩管与伸缩之间采用联接螺栓连接,在一定伸缩范围内,伸缩管对管道系统因热胀冷缩而产生的位移来消化或补充,保证管道系统正常运行。

The steel pipe extension-implement adopts compound sleeve structure. The pipe and the support are connected by the attachment bolt and are limited in some range. The extension pipes absorb or supply the displacement aroused by the expanding or shrinking to ensure the operation of pipe system.

安装与调试:

Installation and regulation:

•  安装前必须清洁伸缩器内腔,不允许有任何杂物和污垢附着。

•  安装时使伸缩管伸出伸缩量的 1/2 ,以保证热胀和冷缩的位移。

•  定期检查运行情况,对长期使用后的伸缩器应及时更换密封圈。

•  Clean the body and there is no dirt and sundries before install the valve.

•  Extend the pipe out from the support of 1/2 expansion amount to ensure the moving of expanding and shrinking.

•  Check the working condition regularly. Replace the sealing ring after the valve is used for a long time.

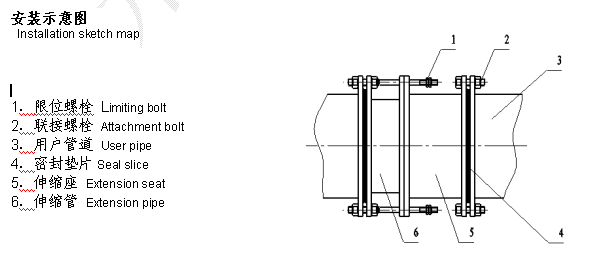

安装示意图

Installation sketch map

订货须知:

Information for order:

•  选用订货时,请参照产品样本注明产品规格、型号及技术参数(使用温度、设备工况、介质性质及工作压力等)。

•  表格中未列的规格、用于特殊介质或其它特殊要求,请与我公司经销部、技术部联系,可为您另行设计制造。

•  Please indicate the type, model and technical parameter (using temperature, working condition of equipment and characteristic of medium etc) referring to the product sample when you place an order.

•  If you have other special demand, need special medium or the date that is not listed in the table, please contact with our department of market and technology. We can design and manufacture for you especially.
