矩形翻板锁风卸灰阀

RECTANGLE AIR-LOCKING TURNING DISC DISCHARGE VALVE

矩形翻板锁风卸灰阀 普遍适用于建材、冶金、石化、电力、矿山、轻工等行业，作为各类除尘设 备的灰斗锁气卸灰装置，及各种磨机、烘干机、料仓、筒库和闭式输送系统等的锁气、卸灰装置。

This valve is widely used in the building material, metallurgy, oil chemical, electric power, mining and light industries etc. It is the discharging or air-locking device of all kinds of removing dust equipment and grinding machine, drying machine, storing house and closing carrying system.

结构特点：

Structure characteristic:

矩形翻板锁风卸灰阀 为上下交替开闭，自动复位机构。分为：①型重锤自动复位机构，具有运转平稳、节能，卸灰量大、小可调，卸灰、锁气可靠之功能。②型吊锤自动复位机构，具有占地面积省、节能，卸灰调节方便，卸灰、锁气可靠之功能。 B 为凸轮、连杆传动，重量自动复位机构； D 为凸轮、连杆传动，弹簧自动复位机构，具有结构紧凑、设计合理、运转平稳，卸灰、锁气可靠。是各种无粘度的固体粉料，小于 Φ 10mm 的颗粒料，晶体料，团状料，给、卸料工况的理想设备。

The valve is the automatic replacement machine of opening and closing alternately. There are four types of valve: type Z is heavy hammer automatic replacement machine, having the features of calm operation, saving energy, adjustable discharging and reliable discharging and air-locking etc. type C is the suspending hammer automatic replacement machine, having the features of saving energy, little in area, convenient in discharging adjust and reliable discharging and air locking etc. Type B is the gravity automatic replacement machine with transmission of cam and connecting pole. Type D is the spring automatic replacement machine with transmission of cam and connecting pole, having the features of compact structure, reasonable design, calm operation and reliable discharging and air locking. It is the ideal equipment of all kinds of non-glutinosity, grain less than Φ 10mm , crystalloid, block material and supply or discharge of material working conditions. Type Ⅰ is the single disc discharging and type Ⅱ is the double disc discharging.

性能参数：

Performance parameter:

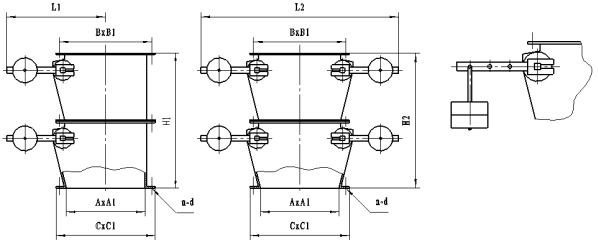

单板卸灰外形图：                     双板卸灰外形图：                 吊锤式外形图：

Appearance figure:                       Appearance figure:                    Appearance figure:

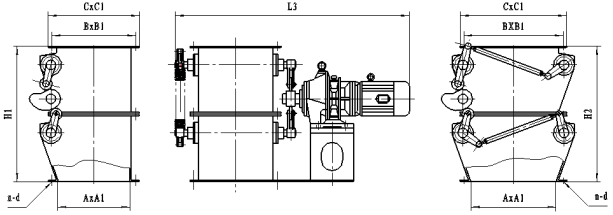

电动单板 外形图                                                 电动双板 外形图

Appearance figure:                                                          Appearance figure:

外形连接尺寸：

Appearance joint dimension:
