百叶窗式风量调节阀

BLIND AUTOMATIC AIR FLOW REGULATOR

百叶窗式风量调节阀 是 公司在引进日本技术的基础上，消化研制的一种新型节能的高效产品。适用于 建材、玻璃、矿山、电力、轻工、造纸等行业 的风机出口及通风管道，对管路中流量根据工况的不同需要进行调节。

The valve is the new type energy saving high efficient product designed on the base of introducing technology of Japan. It is widely used at venting pipe and air-blower outlet in building material, glass, mining, power, light industry and papermaking departments. It adjusts flow in pipe by the different working conditions.

结构特点：

Structure characteristic:

百叶窗式风量调节阀 设计新颖结构合理，调节板采用多叶、多轴式，使气流均匀分流，流阻小，启闭力矩小，动作灵活可靠，各传动部位采用润滑轴承，运转灵活，摩擦系数小调节轻松自如，能有效地控制气体流量，充分利用能源使工作系统达到理想状态，是各种风管系统中理想的气流调节设备 。

The valve has the features of novel design and compact structure. Its regulating disc adopts multi-blade and multi-axle, which can shunt airflow. Flow resistance and open-close torque is little and operation is reliable. The lubricating bearing of transmission part is flexible on operation and handy of regulating with little coefficient of friction. It can control the airflow effectively and make the working system in optimal state by making full use of energy. It is the ideal airflow-regulating device in air piping system.

性能参数：

Performance parameter:

公称压力

Nominal pressure

介质流速

Medium velocity

泄漏率

Leakage ratio

适用温度

Suitable temperature

适用介质

Suitable medium

0.05MPa

≤ 30 m/s

≤ 1.5%

≤ 300 ℃

空气、粉尘气体等

Air, gas with powder etc

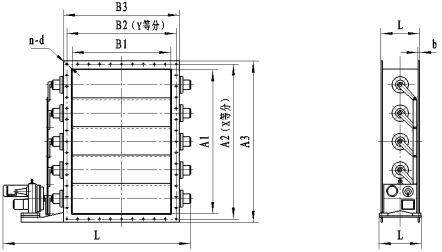

外形图 ：

Appearance figure:

外形连接尺寸 ：

Appearance joint dimensions:

A1 × B1

A2 × B2

A3 × B3

B

b

n-d

X

Y

L

L1

执行器参数

Parameter

320 × 180

355 × 215

380 × 240

180

6

10- Φ 10

3

2

820

250

DKJ-210

T ： 100N · m

P ： 0.025KW

320 × 250

355 × 285

380 × 310

180

6

12- Φ 10

3

3

890

250

400 × 200

445 × 245

480 × 280

200

8

12- Φ 12

4

2

840

250

400 × 320

445 × 365

480 × 400

200

8

14- Φ 12

4

3

960

250

500 × 200

545 × 245

580 × 280

220

8

14- Φ 12

5

2

840

250

500 × 400

545 × 445

580 × 480

220

8

18- Φ 12

5

4

1040

250

630 × 320

675 × 365

710 × 400

220

8

18- Φ 12

6

3

960

250

630 × 400

675 × 445

710 × 480

220

8

20- Φ 12

6

4

1040

250

800 × 400

845 × 445

880 × 480

240

8

22- Φ 12

7

4

1090

300

DKJ-310

T ： 250N · m

P ： 0.065KW

800 × 630

845 × 675

880 × 710

240

8

26- Φ 12

7

6

1320

300

1000 × 500

1055 × 555

1100 × 600

260

10

26- Φ 14

8

5

1190

300

1000 × 800

1055 × 855

1100 × 900

260

10

30- Φ 14

8

7

1490

300

1250 × 630

1305 × 685

1350 × 730

280

10

32- Φ 14

10

6

1320

300

1250 × 1000

1305 × 1055

1350 × 1100

280

10

36- Φ 14

10

8

1690

300

1400 × 800

1455 × 855

1500 × 900

300

10

38- Φ 14

12

7

1560

365

DKJ-410

T ： 600N · m

P ： 0.16KW

1400 × 1250

1455 × 1305

1500 × 1350

300

10

44- Φ 14

12

10

2010

365

1600 × 1000

1655 × 1055

1700 × 1100

320

10

42- Φ 14

13

8

1760

365

1600 × 1250

1655 × 1305

1700 × 1350

320

10

46- Φ 14

13

10

2010

365

1800 × 1250

1865 × 1315

1920 × 1370

340

12

46- Φ 18

13

10

2190

420

DKJ-510

T ： 1600N · m

P ： 0.4KW

1800 × 1400

1865 × 1465

1920 × 1520

340

12

50- Φ 18

13

12

2340

420

2000 × 1250

2065 × 1315

2120 × 1370

360

12

50- Φ 18

15

10

2190

420

2000 × 1800

2065 × 1865

2120 × 1920

360

12

56- Φ 18

15

13

2740

420

2500 × 1800

2565 × 1865

2620 × 1920

420

12

60- Φ 18

17

13

2810

450

DKJ-610A

T ： 2500N · m

P ： 0.65KW

2500 × 2000

2565 × 2065

2620 × 2120

420

12

64- Φ 18

17

15

3010

450

2800 × 2500

2870 × 2570

2930 × 2630

440

16

72- Φ 22

19

17

3510

450

3200 × 2800

3270 × 2870

3330 × 2930

480

16

80- Φ 22

21

19

3840

480

DKJ-610

T ： 4000N · m

P ： 1.0KW

3600 × 3200

3670 × 3270

3730 × 3330

520

16

88- Φ 22

23

21

4240

480

4000 × 3600

4070 × 3670

4130 × 3730

520

16

100- Φ 22

27

23

4640

480
