角行程电动蝶阀

ANGLE AUTOMATIC REGULATION BUTTERFLY VALVE

角行程电动蝶阀,普遍适用于建材、玻璃、矿山、电力、轻工、造纸等行业的通风、环保工程等管道系统中。 对管道中气体介质按不同控制信号调节流量大小和切断。

This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.

结构特点:

Structure characteristic:

角行程电动蝶阀 ,采用优质碳素钢焊接。具有结构合理、耐磨损、流阻损失小、操作灵活、指示方位明确、维护方便、使用寿命长等优点。可水平安装或垂直安装。配用 DKJ 、 ZKJ 、伯纳德等电动执行器及有关配件,可实现手动、自动无干扰切换,微机程控、自动控制或中央集中控制,是实现自动化控制操作、调节流量的理想设备。

The valve is welded in fine carbon steel, having the features of compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed in horizontal or vertical. The valve is used with DKJ, ZKJ, Bernard electric actuator and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It is the ideal equipment of realizing operation of automatic control and adjusting flow.

性能参数:

Performance parameter:

公称压力

Nominal pressure

介质流速

Medium velocity

泄漏率

Leakage ratio

适用温度

Suitable temperature

适用介质

Suitable medium

0.05MPa

≤ 25 m/s

≤ 1%

C

Mn

空气、烟气、粉尘气体等

Air, smoke , gas with powder etc

≤ 300 ℃

≤ 350 ℃

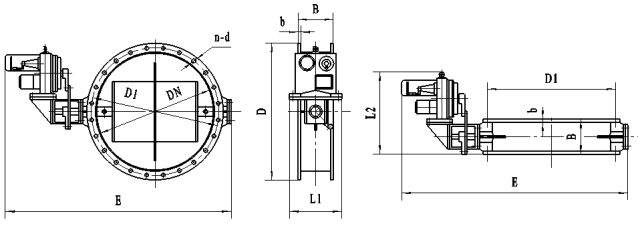

外形图 ( 水平安装 ) 外形图 ( 垂直安装 )

Horizontal installation appearance figure : Vertical installation appearance figure:

外形连接尺寸

Appearance joint dimensions:

DN

D

D1

B

b

n-d

E

L1

L2

执行器参数

Parameter

重量

W(K g)

100

180

145

180

8

4- Φ 12

855

450

620

DKJ-210

T : 100N · m

P : 0.025KW

65

150

230

195

180

8

8- Φ 12

905

450

620

73

200

280

245

180

8

8- Φ 12

965

450

620

81

250

350

305

180

8

12- Φ 12

1015

450

620

84

300

400

355

180

8

12- Φ 12

1085

450

620

92

350

450

405

180

8

12- Φ 12

1135

450

620

95

400

500

455

200

10

16- Φ 14

1385

500

650

DKJ-310

T : 250N · m

P : 0.065KW

169

450

550

505

200

10

16- Φ 14

1440

500

650

201

500

600

555

200

10

20- Φ 14

1486

500

650

221

600

700

655

200

10

20- Φ 14

1596

500

650

292

700

800

755

220

10

20- Φ 14

1780

600

700

DKJ-410

T : 600N · m

P : 0.16KW

402

800

900

855

220

10

24- Φ 14

1895

600

700

439

900

1000

955

220

10

24- Φ 14

1995

600

700

463

1000

1130

1070

260

12

28- Φ 18

2255

620

780

DKJ-510

T : 1600N · m

P : 0.4KW

579

1100

1230

1170

260

12

28- Φ 18

2355

620

780

666

1200

1330

1270

260

12

28- Φ 18

2455

620

780

719

1300

1430

1370

300

12

32- Φ 18

2555

620

820

738

1400

1530

1470

300

12

36- Φ 18

2655

620

820

781

1500

1630

1570

300

12

36- Φ 18

2770

620

820

857

1600

1730

1670

300

12

40- Φ 18

2870

620

820

985

1700

1830

1770

340

16

40- Φ 18

3110

650

900

DKJ-610A

T : 2500N · m

P : 0.65KW

1007

1800

1930

1870

340

16

44- Φ 18

3210

650

900

1413

1900

2030

1970

340

16

44- Φ 18

3310

650

900

1468

2000

2130

2070

340

16

48- Φ 22

3410

650

900

1520

2100

2230

2170

340

16

48- Φ 22

3525

650

900

1575

2200

2330

2270

340

16

48- Φ 22

3625

650

900

1632

2300

2430

2370

380

16

48- Φ 22

3805

650

1000

DKJ-610

T : 4000N · m

P : 1.0KW

2149

2400

2530

2470

380

16

48- Φ 22

3905

650

1000

2247

2500

2630

2570

380

16

52- Φ 22

4005

650

1000

2355

2600

2730

2670

380

16

52- Φ 22

4105

650

1000

2473

2700

2830

2770

420

20

56- Φ 22

4210

750

1350

DKJ-710

T : 6000N · m

P : 1.0KW

3406

2800

2930

2870

420

20

60- Φ 22

4310

750

1350

3489

2900

3030

2970

420

20

60- Φ 22

4410

750

1350

3582

3000

3130

3070

420

20

60- Φ 22

4510

750

1350

3662

矩形角行程电动蝶阀

ANGLE AUTOMATIC REGULATION BUTTERFLY VALVE

角行程电动蝶阀,普遍适用于建材、玻璃、矿山、电力、轻工、造纸等行业的通风、环保工程等管道系统中。 对管道中气体介质按不同控制信号调节流量大小和切断。

This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.

结构特点:

Structure characteristic:

角行程电动蝶阀 ,采用优质钢材焊接。具有结构合理、耐磨损、流阻损失小、操作灵活、指示方位明确、维护方便、使用寿命长等优点。可水平安装或垂直安装。配用 DKJ 、 ZKJ 、伯纳德等电动执行器及有关配件,可实现手动、自动无干扰切换,微机程控、自动控制或中央集中控制,是实现自动化控制操作、调节流量的理想设备。

The valve is welded in fine steel, having the features of compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed in horizontal or vertical. The valve is used with DKJ, ZKJ, Bernard electric actuator and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It is the ideal equipment of realizing operation of automatic control and adjusting flow.

性能参数:

Performance parameter:

公称压力

Nominal pressure

介质流速

Medium velocity

泄漏率

Leakage ratio

适用温度

Suitable temperature

适用介质

Suitable medium

0.05MPa

≤ 25 m/s

≤ 1%

C

Mn

空气、烟气、粉尘气体等

Air, smoke , gas with powder etc

≤ 300℃

≤ 350℃

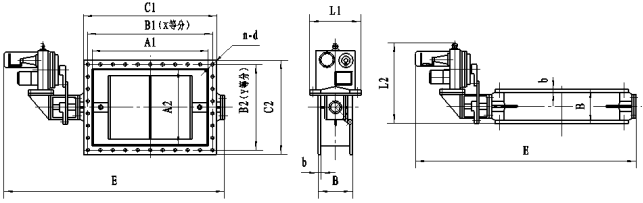

外形图 ( 水平安装 ) 外形图 ( 垂直安装 )

Horizontal installation appearance figure: Vertical installation appearance figure:

外形连接尺寸

Appearance joint dimensions:

A1 × A2

B1 × B2

C1 × C2

B

b

n-d

X

Y

E

L1

L2

执行器参数

Parameter

200 × 200

245 × 245

280 × 280

180

8

8- Φ 12

2

2

1030

445

550

DKJ-210

T:100N · m

P:0.025KW

250 × 250

305 × 305

350 × 350

180

8

12- Φ 12

3

3

1080

445

550

320 × 250

375 × 305

420 × 350

180

8

12- Φ 12

3

3

1150

445

550

320 × 320

375 × 375

420 × 420

180

8

12- Φ 12

3

3

1150

445

550

400 × 320

455 × 375

500 × 420

180

8

14- Φ 14

4

3

1250

445

550

400 × 400

455 × 455

500 × 500

200

10

16- Φ 14

4

4

1280

520

600

DKJ-310

T:250N · m

P:0.065KW

500 × 320

555 × 375

600 × 420

200

10

16- Φ 14

5

3

1380

520

600

500 × 400

555 × 455

600 × 500

200

10

18- Φ 14

5

4

1380

520

600

500 × 500

555 × 555

600 × 600

200

10

20- Φ 14

5

5

1380

520

600

630 × 320

685 × 375

730 × 420

200

10

18- Φ 14

6

3

1530

520

600

630 × 400

685 × 455

730 × 500

200

10

20- Φ 14

6

4

1530

520

600

630 × 500

685 × 555

730 × 600

200

10

22- Φ 14

6

5

1530

520

600

630 × 630

685 × 685

730 × 730

220

10

24- Φ 14

6

6

1670

620

600

DKJ-410

T:600N · m

P:0.16KW

800 × 400

855 × 455

900 × 500

220

10

22- Φ 14

7

4

1840

620

600

800 × 500

855 × 555

900 × 600

220

10

24- Φ 14

7

5

1840

620

600

800 × 630

855 × 685

900 × 730

220

10

26- Φ 14

7

6

1840

620

600

800 × 800

855 × 855

900 × 900

220

10

28- Φ 14

7

7

1840

620

600





1000 × 400

1070 × 470

1130 × 530

220

12

22- Φ 18

8

3

2040

620

600

1000 × 500

1070 × 570

1130 × 630

220

12

24- Φ 18

8

4

2040

620

600

1000 × 630

1070 × 700

1130 × 760

220

12

26- Φ 18

8

5

2040

620

600

1000 × 800

1070 × 870

1130 × 930

260

12

28- Φ 18

8

6

2220

630

650

DKJ-510

T:1600N · m

P:0.4KW

1000 × 1000

1070 × 1070

1130 × 1130

260

12

32- Φ 18

8

8

2220

630

650

1250 × 400

1320 × 470

1380 × 530

260

12

26- Φ 18

10

3

2470

630

650

1250 × 500

1320 × 570

1380 × 630

260

12

28- Φ 18

10

4

2470

630

650

1250 × 630

1320 × 700

1380 × 760

260

12

30- Φ 18

10

5

2470

630

650

1250 × 800

1320 × 870

1380 × 930

260

12

32- Φ 18

10

6

2470

630

650

1250 × 1000

1320 × 1070

1380 × 1130

300

16

36- Φ 22

10

8

2470

630

650

1600 × 630

1670 × 700

1730 × 760

300

16

36- Φ 22

13

5

2840

630

650

1600 × 800

1670 × 870

1730 × 930

300

16

38- Φ 22

13

6

2840

630

650

1600 × 1250

1670 × 1320

1730 × 1380

340

16

46- Φ 22

13

10

2840

630

650

DKJ-610A

T:2500N · m

P:0.65KW

2000 × 800

2070 × 870

2130 × 930

340

16

42- Φ 22

15

6

3330

630

650

2000 × 1000

2070 × 1070

2130 × 1130

340

16

46- Φ 22

15

8

3330

630

650

直行程电动蝶阀

STRAIGHT CONNECTION AUTOMATIC REGULATION BUTTERFLY VALVE

直行程电动 蝶阀,普遍适用于建材、玻璃、矿山、电力、轻工、造纸等行业的通风、环保工程等管道系统中。 对管道中气体介质按不同控制信号调节流量大小和切断。

This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.

结构特点:

Structure characteristic:

直行程电动 蝶阀 ,采用优质钢材焊接。具有结构合理、耐磨损、流阻损失小、操作灵活、指示方位明确、维护方便、使用寿命长等优点。可实现任意角度安装。配用 DKJ 、 ZKJ 、伯纳德等电动执行器及有关配件,可实现手动、自动无干扰切换、微机程控、自动控制或中央集中控制,是实现自动化控制操作、调节流量的理想设备。

The valve is welded in fine steel, having the features of compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed at any angle. The valve is used with DKJ, ZKJ, Bernard electric actuator and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It is the ideal equipment of realizing operation of automatic control and adjusting flow.

性能参数:

Performance parameter:

公称压力

Nominal pressure

介质流速

Medium velocity

泄漏率

Leakage ratio

适用温度

Suitable temperature

适用介质

Suitable medium

0.05MPa

≤ 25 m/s

≤ 1%

C

Mn

空气、烟气、粉尘气体等

Air, smoke , gas with powder etc

≤ 300℃

≤ 350℃

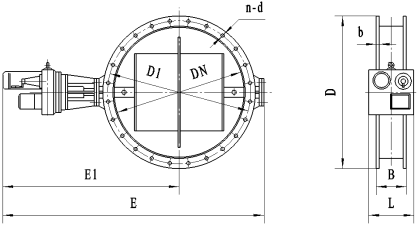

外形图:

Appearance figure:

外形连接尺寸:

Appearance joint dimensions:

DN

D

D1

B

b

n-d

E

E1

L

执行器参数

Parameter

100

180

145

180

8

4- Φ 12

955

600

450

DKJ-210

T : 100N · m

P : 0.025KW

150

230

195

180

8

8- Φ 12

1005

625

450

200

280

245

180

8

8- Φ 12

1065

650

450

250

350

305

180

8

12- Φ 12

1115

675

450

300

400

355

180

8

12- Φ 12

1185

725

450

350

450

405

180

8

12- Φ 12

1235

750

450

400

500

455

200

10

16- Φ 14

1485

815

500

DKJ-310

T : 250N · m

P : 0.065KW

450

550

505

200

10

16- Φ 14

1540

865

500

500

600

555

200

10

20- Φ 14

1586

915

500

600

700

655

200

10

20- Φ 14

1696

1015

500

700

800

755

220

10

20- Φ 14

1880

1125

600

DKJ-410

T : 600N · m

P : 0.16KW

800

900

855

220

10

24- Φ 14

1995

1175

600

900

1000

955

220

10

24- Φ 14

2095

1475

600

1000

1130

1070

260

12

28- Φ 18

2355

1525

620

DKJ-510

T : 1600N · m

P : 0.4KW

1100

1230

1170

260

12

28- Φ 18

2455

1575

620

1200

1330

1270

260

12

28- Φ 18

2555

1625

620

1300

1430

1370

300

12

32- Φ 18

2655

1725

620

1400

1530

1470

300

12

36- Φ 18

2755

1775

620

1500

1630

1570

300

12

36- Φ 18

2870

1845

620

1600

1730

1670

300

12

40- Φ 18

2970

1895

620

1700

1830

1770

340

16

40- Φ 18

3210

1945

650

DKJ-610A

T : 2500N · m

P : 0.65KW

1800

1930

1870

340

16

44- Φ 18

3310

1995

650

1900

2030

1970

340

16

44- Φ 18

3410

2045

650

2000

2130

2070

340

16

48- Φ 22

3510

2095

650

2100

2230

2170

340

16

48- Φ 22

3625

2145

650

2200

2330

2270

340

16

48- Φ 22

3725

2195

650

2300

2430

2370

380

16

48- Φ 22

3935

2245

650

DKJ-610

T : 4000N · m

P : 1.0KW

2400

2530

2470

380

16

48- Φ 22

4035

2295

650

2500

2630

2570

380

16

52- Φ 22

4135

2345

650

2600

2730

2670

380

16

52- Φ 22

4235

2395

650

2700

2830

2770

420

20

56- Φ 22

4340

2550

700

DKJ-710

T : 6000N · m

P : 1.0KW

2800

2930

2870

420

20

60- Φ 22

4440

2600

700

2900

3030

2970

420

20

60- Φ 22

4540

2650

700

3000

3130

3070

420

20

60- Φ 22

4640

2700

700
