手动蝶阀
MANUAL GAS FLOWING regulating valve
手动蝶阀广泛适用于 建材、玻璃、矿山、电力、轻工、造纸等行业, 在管路上作为双向启闭及调节介质的流量的重要设备, 对管路中流量根据工况的不同需要进行调节,以满足管道工艺运行的需要。
This valve is widely used in building material, glass, mining, power, light industry etc. It is also the important device in pipe system to open or close and adjust medium flow in two ways. It can meet the demand of pipe technology operation by adjusting flow according with the different working conditions.
结构特点:
Structure characteristic:
手动蝶阀 采用优质钢板焊接而成, 设计新颖、结构简单实用、体积小、重量轻、流阻小、启闭力矩小,调节轻松自如、灵活可靠, 开度指示显著、清晰、准确,便于观察和操作 ,能有效地控制气体流量,是各种风管系统中理想的调节设备 。
The valve is welded in fine steel, having the features of novel design, compact structure, light weight, endurance, little in the lost of flow resistance and open-close torque, definite direction. It is convenient to observe or operate. It is the ideal regulating equipment of controlling gas flow effectively in all kinds of windpipe system.
性能参数:
Performance parameter:
公称压力 Nominal pressure |
介质流速 Medium velocity |
泄漏率 Leakage ratio |
适用温度 Suitable temperature |
适用介质 Suitable medium |
0.05MPa |
≤ 28 m/s |
≤ 1.5 % |
≤ 300 ℃ |
空气、粉尘气体等 Air, gas with powder etc |

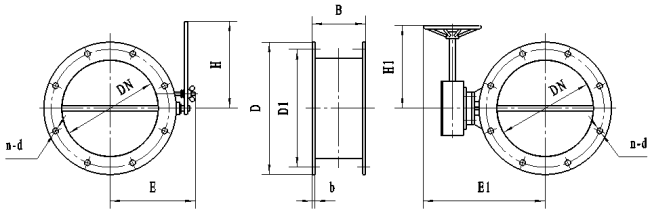

手柄式 外形图: 蜗轮式 外形图:
Appearance figure : Appearance figure :
外形连接尺寸 :
Appearance joint dimensions:
DN |
D |
D1 |
B |
b |
n-d |
E |
E1 |
H |
H1 |
100 |
160 |
135 |
80 |
4 |
4- Φ 10 |
140 |
180 |
150 |
200 |
120 |
180 |
155 |
80 |
4 |
4- Φ 10 |
145 |
190 |
150 |
200 |
125 |
185 |
160 |
80 |
4 |
4- Φ 10 |
148 |
193 |
150 |
200 |
130 |
190 |
165 |
80 |
4 |
8- Φ 10 |
150 |
195 |
150 |
200 |
140 |
200 |
175 |
80 |
4 |
8- Φ 10 |
155 |
205 |
150 |
200 |
150 |
210 |
185 |
80 |
4 |
8- Φ 10 |
160 |
210 |
150 |
200 |
160 |
220 |
195 |
80 |
4 |
8- Φ 10 |
165 |
215 |
200 |
200 |
180 |
240 |
215 |
80 |
4 |
8- Φ 10 |
175 |
225 |
200 |
200 |
200 |
260 |
235 |
80 |
4 |
8- Φ 10 |
185 |
235 |
200 |
200 |
220 |
280 |
255 |
80 |
4 |
8- Φ 10 |
210 |
347 |
200 |
200 |
250 |
310 |
285 |
100 |
6 |
12- Φ 10 |
225 |
365 |
350 |
200 |
280 |
340 |
315 |
100 |
6 |
12- Φ 10 |
240 |
380 |
350 |
200 |
320 |
380 |
355 |
100 |
6 |
12- Φ 10 |
260 |
400 |
350 |
200 |
360 |
440 |
405 |
120 |
8 |
16- Φ 12 |
280 |
420 |
350 |
200 |
390 |
470 |
435 |
120 |
8 |
16- Φ 12 |
295 |
435 |
350 |
200 |
400 |
480 |
445 |
120 |
8 |
16- Φ 12 |
300 |
440 |
450 |
250 |
450 |
530 |
495 |
120 |
8 |
16- Φ 12 |
325 |
465 |
450 |
250 |
500 |
580 |
545 |
120 |
8 |
20- Φ 12 |
350 |
490 |
450 |
250 |
560 |
640 |
605 |
120 |
8 |
20- Φ 12 |
380 |
520 |
450 |
250 |
600 |
680 |
645 |
120 |
8 |
20- Φ 12 |
420 |
540 |
600 |
250 |
630 |
710 |
675 |
120 |
8 |
20- Φ 12 |
435 |
555 |
600 |
250 |
700 |
780 |
745 |
140 |
8 |
20- Φ 12 |
470 |
612 |
600 |
250 |
800 |
880 |
845 |
140 |
8 |
24- Φ 12 |
520 |
665 |
600 |
250 |
900 |
980 |
945 |
140 |
8 |
24- Φ 12 |
570 |
715 |
600 |
250 |
1000 |
1100 |
1055 |
160 |
10 |
28- Φ 14 |
620 |
845 |
600 |
250 |
1120 |
1220 |
1175 |
160 |
10 |
28- Φ 14 |
680 |
905 |
600 |
250 |
1200 |
1300 |
1255 |
160 |
10 |
28- Φ 14 |
720 |
945 |
600 |
250 |
矩形手动蝶阀
MANUAL GAS FLOWING regulating valve
手动蝶阀广泛适用于 建材、玻璃、矿山、电力、轻工、造纸等行业, 在管路上作为双向启闭及调节介质的流量的重要设备, 对管路中流量根据工况的不同需要进行调节,以满足管道工艺运行的需要。
This valve is widely used in building material, glass, mining, power, light industry etc. It is also the important device in pipe system to open or close and adjust medium flow in two ways. It can meet the demand of pipe technology operation by adjusting flow according with the different working conditions.
结构特点:
Structure characteristic:
手动蝶阀 采用优质钢板焊接而成, 设计新颖、结构简单实用、体积小、重量轻、流阻小、启闭力矩小,调节轻松自如、灵活可靠, 开度指示显著、清晰、准确,便于观察和操作 ,能有效地控制气体流量,是各种风管系统中理想的调节设备 。
The valve is welded in fine steel, having the features of novel design, compact structure, light weight, endurance, little in the lost of flow resistance and open-close torque, definite direction. It is convenient to observe or operate. It is the ideal regulating equipment of controlling gas flow effectively in all kinds of windpipe system.
性能参数:
Performance parameter:
公称压力 Nominal pressure |
介质流速 Medium velocity |
泄漏率 Leakage ratio |
适用温度 Suitable temperature |
适用介质 Suitable medium |
0.05MPa |
≤ 28 m/s |
≤ 1.5% |
≤ 300 ℃ |
空气、粉尘气体等 Air, gas with powder etc |

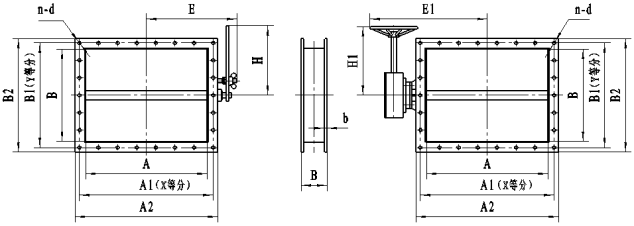

手柄式 外形图: 蜗轮式 外形图 Appearance figure :
外形连接尺寸 :
Appearance joint dimensions:
A × B |
A1 × B1 |
A2 × B2 |
B |
b |
n-d |
X |
Y |
H |
H1 |
E |
E1 |
120 × 120 |
155 × 155 |
180 × 180 |
80 |
4 |
8- Φ 10 |
2 |
2 |
150 |
200 |
140 |
190 |
160 × 120 |
195 × 155 |
220 × 180 |
80 |
4 |
8- Φ 10 |
2 |
2 |
150 |
200 |
165 |
215 |
160 × 160 |
195 × 195 |
220 × 220 |
80 |
4 |
8- Φ 10 |
2 |
2 |
150 |
200 |
165 |
215 |
200 × 160 |
235 × 195 |
260 × 220 |
80 |
4 |
8- Φ 10 |
2 |
2 |
150 |
200 |
185 |
235 |
200 × 200 |
235 × 235 |
260 × 260 |
80 |
4 |
8- Φ 10 |
2 |
2 |
200 |
200 |
185 |
235 |
250 × 120 |
285 × 155 |
310 × 180 |
100 |
6 |
10- Φ 10 |
3 |
2 |
150 |
200 |
225 |
365 |
250 × 160 |
285 × 195 |
310 × 220 |
100 |
6 |
10- Φ 10 |
3 |
2 |
150 |
200 |
225 |
365 |
250 × 200 |
285 × 235 |
310 × 260 |
100 |
6 |
10- Φ 10 |
3 |
2 |
200 |
200 |
225 |
365 |
250 × 250 |
285 × 285 |
310 × 310 |
100 |
6 |
12- Φ 10 |
3 |
3 |
200 |
200 |
225 |
365 |
320 × 160 |
355 × 195 |
380 × 220 |
100 |
6 |
10- Φ 10 |
3 |
2 |
200 |
200 |
260 |
400 |
320 × 200 |
355 × 235 |
380 × 260 |
100 |
6 |
10- Φ 10 |
3 |
2 |
300 |
200 |
260 |
400 |
320 × 250 |
355 × 285 |
380 × 310 |
100 |
6 |
12- Φ 10 |
3 |
3 |
300 |
200 |
260 |
400 |
320 × 320 |
355 × 355 |
380 × 380 |
100 |
6 |
12- Φ 10 |
3 |
3 |
300 |
200 |
260 |
400 |
400 × 200 |
445 × 245 |
480 × 280 |
120 |
8 |
12- Φ 12 |
4 |
2 |
300 |
250 |
300 |
440 |
400 × 250 |
445 × 295 |
480 × 330 |
120 |
8 |
14- Φ 12 |
4 |
3 |
300 |
250 |
300 |
440 |
400 × 320 |
445 × 365 |
480 × 400 |
120 |
8 |
14- Φ 12 |
4 |
3 |
300 |
250 |
300 |
440 |
400 × 400 |
445 × 445 |
480 × 480 |
120 |
8 |
16- Φ 12 |
4 |
4 |
300 |
250 |
300 |
440 |
500 × 200 |
545 × 245 |
580 × 280 |
120 |
8 |
14- Φ 12 |
5 |
2 |
350 |
250 |
350 |
490 |
500 × 250 |
545 × 295 |
580 × 330 |
120 |
8 |
16- Φ 12 |
5 |
3 |
350 |
250 |
350 |
490 |
500 × 320 |
545 × 365 |
580 × 400 |
120 |
8 |
16- Φ 12 |
5 |
3 |
350 |
250 |
350 |
490 |
500 × 400 |
545 × 445 |
580 × 480 |
120 |
8 |
18- Φ 12 |
5 |
4 |
350 |
250 |
350 |
490 |
500 × 500 |
545 × 545 |
580 × 580 |
120 |
8 |
20- Φ 12 |
5 |
5 |
350 |
250 |
350 |
490 |
630 × 250 |
675 × 295 |
710 × 330 |
120 |
8 |
18- Φ 12 |
6 |
3 |
450 |
250 |
435 |
555 |
630 × 320 |
675 × 365 |
710 × 400 |
120 |
8 |
18- Φ 12 |
6 |
3 |
450 |
250 |
435 |
555 |
630 × 400 |
675 × 445 |
710 × 480 |
120 |
8 |
20- Φ 12 |
6 |
4 |
450 |
250 |
435 |
555 |
630 × 500 |
675 × 545 |
710 × 580 |
120 |
8 |
22- Φ 12 |
6 |
5 |
450 |
250 |
435 |
555 |
630 × 630 |
675 × 675 |
710 × 710 |
120 |
8 |
24- Φ 12 |
6 |
6 |
450 |
250 |
435 |
555 |
800 × 320 |
845 × 365 |
880 × 400 |
140 |
8 |
20- Φ 12 |
7 |
3 |
500 |
250 |
520 |
665 |
800 × 400 |
845 × 445 |
880 × 480 |
140 |
8 |
22- Φ 12 |
7 |
4 |
500 |
250 |
520 |
665 |
800 × 500 |
845 × 545 |
880 × 580 |
140 |
8 |
24- Φ 12 |
7 |
5 |
500 |
250 |
520 |
665 |
800 × 630 |
845 × 675 |
880 × 710 |
140 |
8 |
26- Φ 12 |
7 |
6 |
500 |
250 |
520 |
665 |
800 × 800 |
845 × 845 |
880 × 880 |
140 |
8 |
28- Φ 12 |
7 |
7 |
500 |
250 |
520 |
665 |
