轻型蝶阀 I
light-duty AUTOMATIC BUTTERFLY VALVE
轻型蝶阀,普遍适用于建材、玻璃、矿山、电力、轻工、造纸等行业的通风、环保工程等管道系统中。 对管道中气体介质按不同控制信号调节流量大小和切断。
This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.
结构特点:
Structure characteristic:
轻型自动蝶阀 ,采用优质碳素钢焊接。具有重量轻、结构简单、流阻损失小、操作灵活、指示方位明确、维护方便、使用寿命长、可任意安装等优点。配用电子式电动执行器及有关配件,可实现手动、自动无干扰切换。采用电子控制模块 , 无须外接伺服放大器 , 直接接受仪表或计算机输出 4 ~ 20mA 信号 , 按输入信号和电装位置进行智能调整自动定位。能微机程控、自动控制或中央集中控制,是实现自动化控制操作、调节流量的理想设备。
The valve is welded in fine carbon steel, having the features of light weight, compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed at any angle. The valve is used with electronic type and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It adopts electron control module without outer servo amplifier and receives 4 ~ 20mA signal directly output by meter or computer without out servo amplifier, adjusting its position referring to the input signal and electric device position. It is the ideal equipment of realizing operation of automatic control and adjusting flow.
性能参数:
Performance parameter:
公称压力 Nominal pressure |
介质流速 Medium velocity |
泄漏率 Leakage ratio |
适用温度 Suitable temperature |
适用介质 Suitable medium |
0.05MPa |
≤ 25 m/s |
≤ 1% |
≤ 300 ℃ |
空气、烟气、粉尘气体等 Air, smoke , gas with powder etc |

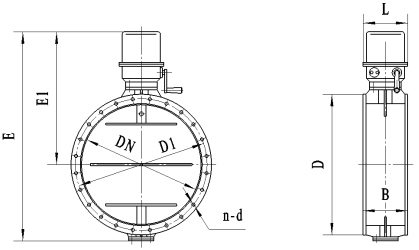

外形图
Appearance figure:
QZF---Ⅰ 外形连接尺寸:
Appearance joint dimensions:
DN |
D |
D1 |
B |
n-d |
E |
E1 |
L |
100 |
160 |
135 |
80 |
4- Φ 10 |
505 |
405 |
260 |
150 |
210 |
185 |
80 |
8- Φ 10 |
555 |
430 |
260 |
200 |
260 |
235 |
80 |
8- Φ 10 |
605 |
455 |
260 |
250 |
310 |
285 |
100 |
12- Φ 10 |
655 |
480 |
260 |
300 |
360 |
335 |
100 |
12- Φ 10 |
705 |
505 |
260 |
350 |
410 |
385 |
100 |
12- Φ 10 |
755 |
530 |
260 |
400 |
480 |
445 |
120 |
16- Φ 12 |
805 |
555 |
260 |
450 |
530 |
495 |
120 |
16- Φ 12 |
895 |
610 |
260 |
500 |
580 |
545 |
120 |
20- Φ 12 |
945 |
635 |
260 |
600 |
680 |
645 |
120 |
20- Φ 12 |
1045 |
685 |
260 |
700 |
780 |
745 |
140 |
20- Φ 12 |
1145 |
735 |
380 |
800 |
880 |
845 |
140 |
24- Φ 12 |
1245 |
785 |
380 |
900 |
980 |
945 |
140 |
24- Φ 12 |
1345 |
835 |
380 |
1000 |
1100 |
1055 |
160 |
28- Φ 14 |
1445 |
885 |
380 |
1100 |
1200 |
1155 |
160 |
28- Φ 14 |
1545 |
935 |
380 |
1200 |
1300 |
1255 |
160 |
28- Φ 14 |
1645 |
985 |
380 |
1300 |
1400 |
1355 |
160 |
32- Φ 14 |
1765 |
1045 |
380 |
1400 |
1500 |
1455 |
160 |
36- Φ 14 |
2010 |
1230 |
380 |
1500 |
1600 |
1555 |
160 |
36- Φ 14 |
2110 |
1280 |
380 |
1600 |
1700 |
1655 |
160 |
40- Φ 14 |
2210 |
1330 |
380 |
1700 |
1820 |
1765 |
200 |
40- Φ 18 |
2310 |
1380 |
380 |
1800 |
1920 |
1865 |
200 |
44- Φ 18 |
2410 |
1430 |
380 |
1900 |
2020 |
1965 |
200 |
44- Φ 18 |
2510 |
1480 |
380 |
2000 |
2120 |
2065 |
200 |
48- Φ 18 |
3030 |
1950 |
400 |
2100 |
2220 |
2165 |
200 |
48- Φ 18 |
3130 |
2000 |
400 |
2200 |
2320 |
2265 |
200 |
48- Φ 18 |
3230 |
2050 |
400 |
2300 |
2420 |
2365 |
240 |
48- Φ 18 |
3330 |
2100 |
400 |
2400 |
2520 |
2465 |
240 |
48- Φ 18 |
3430 |
2150 |
400 |
2500 |
2620 |
2565 |
240 |
52- Φ 18 |
3530 |
2200 |
400 |
2600 |
2720 |
2665 |
240 |
52- Φ 18 |
3680 |
2290 |
450 |
2700 |
2830 |
2770 |
280 |
56- Φ 22 |
3780 |
2340 |
450 |
2800 |
2930 |
2870 |
280 |
60- Φ 22 |
3880 |
2390 |
450 |
2900 |
3130 |
2970 |
280 |
60- Φ 22 |
3980 |
2440 |
450 |
3000 |
3230 |
3070 |
280 |
60- Φ 22 |
4080 |
2490 |
450 |
轻型蝶阀 II
light-duty AUTOMATIC BUTTERFLY VALVE
轻型自动蝶阀,普遍适用于建材、玻璃、矿山、电力、轻工、造纸等行业的通风、环保工程等管道系统中。 对管道中气体介质按不同控制信号调节流量大小和切断。
This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.
结构特点:
Structure characteristic:
轻型自动蝶阀 ,采用优质碳素钢焊接。具有重量轻、结构简单、流阻损失小、操作灵活、指示方位明确、维护方便、使用寿命长、可任意安装等优点。配用电子式电动执行器及有关配件,可实现手动、自动无干扰切换。采用电子控制模块 , 无须外接伺服放大器 , 直接接受仪表或计算机输出 4 ~ 20mA 信号 , 按输入信号和电装位置进行智能调整自动定位。能微机程控、自动控制或中央集中控制,是实现自动化控制操作、调节流量的理想设备。
The valve is welded in fine carbon steel, having the features of light weight, compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed at any angle. The valve is used with electronic type and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It adopts electron control module without outer servo amplifier and receives 4 ~ 20mA signal directly output by meter or computer without out servo amplifier, adjusting its position referring to the input signal and electric device position. It is the ideal equipment of realizing operation of automatic control and adjusting flow.
性能参数:
Performance parameter:
公称压力 Nominal pressure |
介质流速 Medium velocity |
泄漏率 Leakage ratio |
适用温度 Suitable temperature |
适用介质 Suitable medium |
0.05MPa |
≤ 25 m/s |
≤ 1% |
≤ 300 ℃ |
空气、烟气、粉尘气体等 Air, smoke , gas with powder etc |

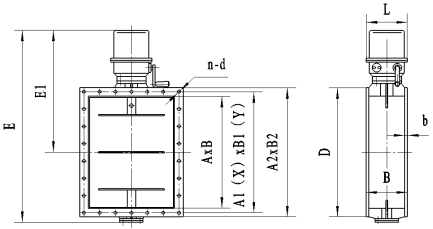

外形图
Appearance figure:
外形连接尺寸 :
Appearance joint dimensions:
A × B |
A1 × B1 |
A2 × B2 |
B |
b |
n-d |
X |
Y |
E |
E1 |
L |
200 × 200 |
235 × 235 |
260 × 260 |
100 |
4 |
8- Φ 10 |
2 |
2 |
605 |
455 |
260 |
250 × 250 |
285 × 285 |
310 × 310 |
100 |
6 |
12- Φ 10 |
3 |
3 |
655 |
480 |
260 |
320 × 250 |
355 × 285 |
380 × 310 |
100 |
6 |
12- Φ 10 |
3 |
3 |
725 |
525 |
260 |
320 × 320 |
355 × 355 |
380 × 380 |
100 |
6 |
12- Φ 10 |
3 |
3 |
725 |
525 |
260 |
400 × 320 |
445 × 365 |
480 × 400 |
120 |
8 |
14- Φ 10 |
4 |
3 |
805 |
555 |
380 |
400 × 400 |
445 × 445 |
480 × 480 |
120 |
8 |
16- Φ 10 |
4 |
4 |
805 |
555 |
380 |
500 × 320 |
545 × 365 |
580 × 400 |
120 |
8 |
16- Φ 10 |
5 |
3 |
945 |
635 |
380 |
500 × 400 |
545 × 445 |
580 × 480 |
120 |
8 |
18- Φ 10 |
5 |
4 |
945 |
635 |
380 |
500 × 500 |
545 × 545 |
580 × 580 |
120 |
8 |
20- Φ 12 |
5 |
5 |
945 |
635 |
380 |
630 × 320 |
675 × 365 |
710 × 400 |
140 |
8 |
18- Φ 12 |
6 |
3 |
1075 |
715 |
380 |
630 × 400 |
675 × 445 |
710 × 480 |
140 |
8 |
20- Φ 12 |
6 |
4 |
1075 |
715 |
380 |
630 × 500 |
675 × 545 |
710 × 580 |
140 |
8 |
22- Φ 12 |
6 |
5 |
1075 |
715 |
380 |
630 × 630 |
675 × 675 |
710 × 710 |
140 |
8 |
24- Φ 12 |
6 |
6 |
1075 |
715 |
380 |
800 × 400 |
845 × 445 |
880 × 480 |
140 |
8 |
22- Φ 12 |
7 |
4 |
1245 |
785 |
380 |
800 × 500 |
845 × 545 |
880 × 580 |
140 |
8 |
24- Φ 12 |
7 |
5 |
1245 |
785 |
380 |
800 × 630 |
845 × 675 |
880 × 710 |
140 |
8 |
26- Φ 12 |
7 |
6 |
1245 |
785 |
380 |
800 × 800 |
845 × 845 |
880 × 880 |
140 |
8 |
28- Φ 14 |
7 |
7 |
1245 |
785 |
380 |
1000 × 400 |
1055 × 455 |
1100 × 500 |
160 |
10 |
22- Φ 14 |
8 |
3 |
1445 |
885 |
380 |
1000 × 500 |
1055 × 555 |
1100 × 600 |
160 |
10 |
24- Φ 14 |
8 |
4 |
1445 |
885 |
380 |
1000 × 630 |
1055 × 685 |
1100 × 730 |
160 |
10 |
26- Φ 14 |
8 |
5 |
1445 |
885 |
380 |
1000 × 800 |
1055 × 855 |
1100 × 900 |
160 |
10 |
28- Φ 14 |
8 |
6 |
1445 |
885 |
380 |
1000 × 1000 |
1055 × 1055 |
1100 × 1100 |
160 |
10 |
32- Φ 14 |
8 |
8 |
1445 |
885 |
380 |
1250 × 400 |
1305 × 455 |
1350 × 500 |
160 |
10 |
26- Φ 14 |
10 |
3 |
1695 |
1035 |
380 |
1250 × 500 |
1305 × 555 |
1350 × 600 |
160 |
10 |
28- Φ 14 |
10 |
4 |
1695 |
1035 |
380 |
1250 × 630 |
1305 × 685 |
1350 × 730 |
160 |
10 |
30- Φ 14 |
10 |
5 |
1695 |
1035 |
380 |
1250 × 800 |
1305 × 855 |
1350 × 900 |
160 |
10 |
32- Φ 14 |
10 |
6 |
1695 |
1035 |
380 |
1250 × 1000 |
1305 × 1055 |
1350 × 1100 |
160 |
10 |
36- Φ 14 |
10 |
8 |
1695 |
1035 |
380 |
1600 × 630 |
1655 × 685 |
1700 × 730 |
200 |
10 |
36- Φ 14 |
13 |
5 |
2210 |
1330 |
380 |
1600 × 800 |
1655 × 855 |
1700 × 900 |
200 |
10 |
38- Φ 14 |
13 |
6 |
2210 |
1330 |
380 |
1600 × 1250 |
1655 × 1305 |
1700 × 1350 |
200 |
10 |
46- Φ 18 |
13 |
10 |
2210 |
1330 |
380 |
2000 × 800 |
2065 × 865 |
2120 × 920 |
200 |
12 |
42- Φ 18 |
15 |
6 |
3030 |
1950 |
380 |
2000 × 1000 |
2065 × 1065 |
2120 × 1120 |
200 |
12 |
46- Φ 18 |
15 |
8 |
3030 |
1950 |
400 |
2000 × 1250 |
2065 × 1315 |
2120 × 1370 |
200 |
12 |
50- Φ 18 |
15 |
10 |
3030 |
1950 |
400 |
2000 × 1600 |
2065 × 1665 |
2120 × 1720 |
200 |
12 |
56- Φ 18 |
15 |
13 |
3030 |
1950 |
